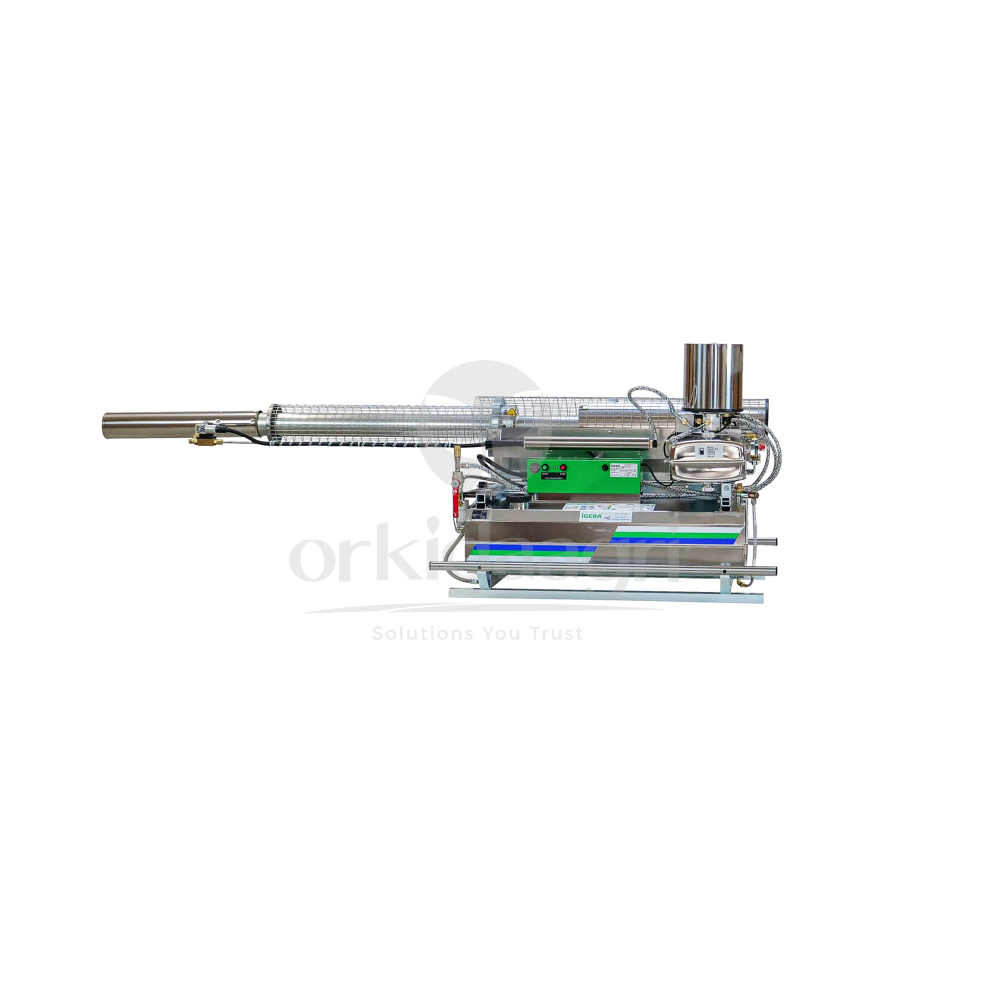

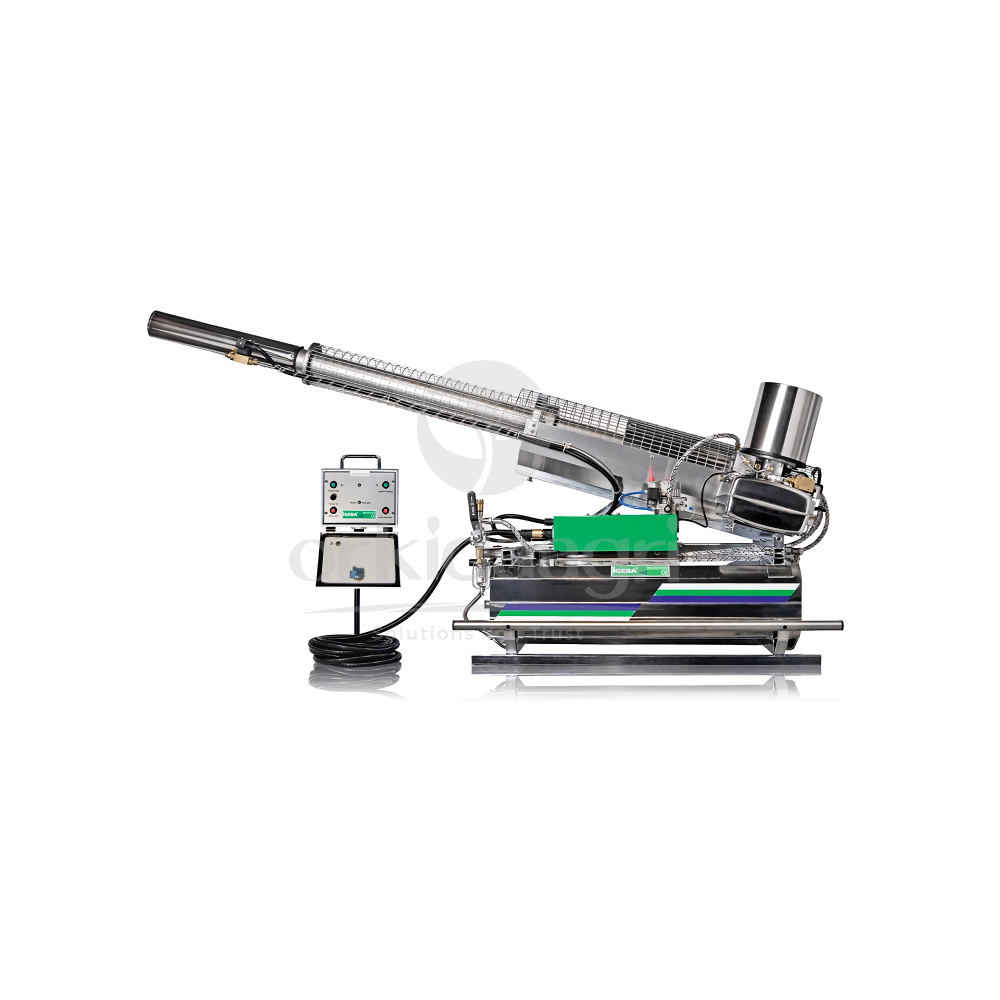

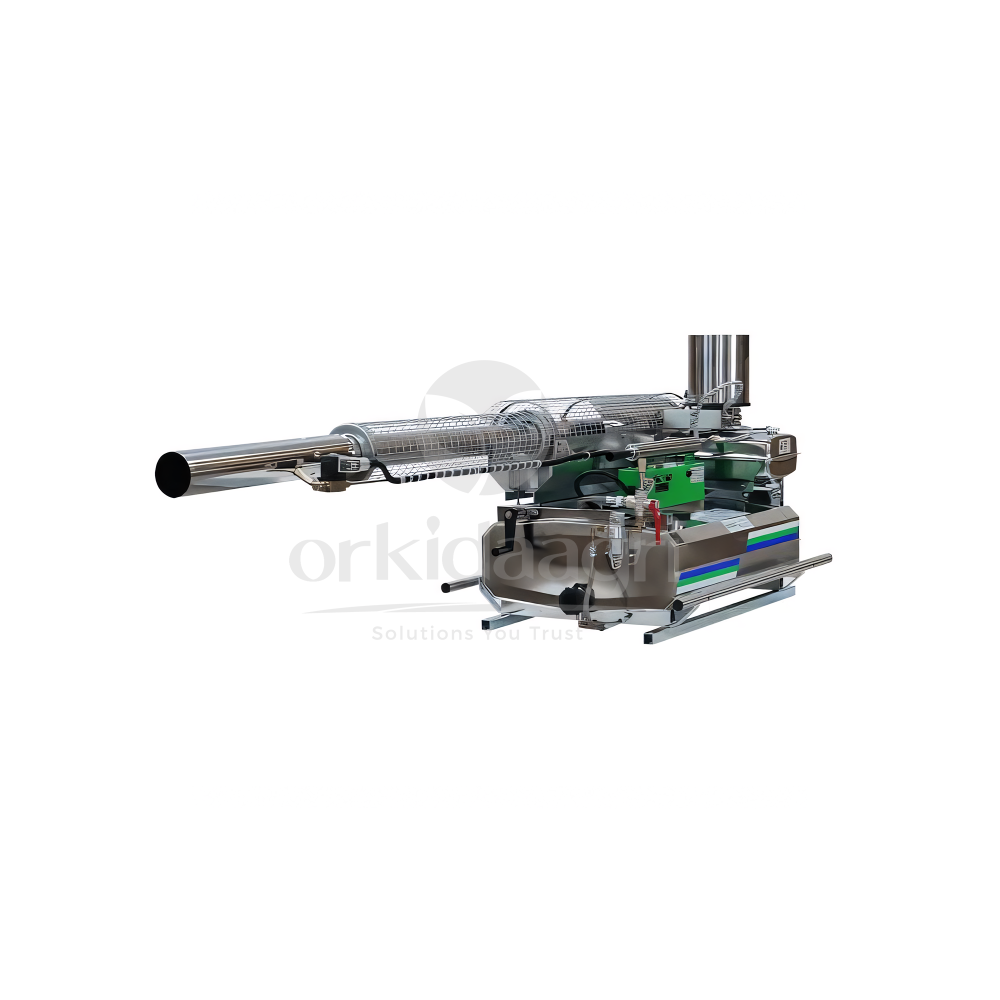

- The IGEBA TF 95 HD thermal fogger is a professional German-made machine designed for flying and crawling insect control and disease-vector control, as well as disinfection, stored-product protection and plant protection applications using formulations intended for each use.
- The unit produces a very fine thermal fog with high dispersal and penetration, reaching cracks, voids and hard-to-reach places, which helps distribute the treatment solution efficiently in large spaces and enclosed sites.
- It features a large 60 L stainless steel solution tank and a 50 hp combustion chamber, with an oil-based solution flow of up to 100 L/hour. It can be operated as a stationary unit or mounted on vehicles for large-scale outdoor treatments.
Key Features:
- 50 hp combustion power: high performance for generating dense, fast-spreading thermal fog.
- Large 60 L tank: made of stainless steel and suited to professional work requiring longer run times.
- Flow up to 100 L/hour: with oil-based solutions, with an average flow of about 60 L/hour.
- Ultra-fine fog droplets: below 20 microns VMD with oil carriers, for effective dispersal and distribution.
- High penetration: the fog reaches cracks, cavities and voids that conventional sprayers cannot easily reach.
- Stationary or vehicle-mounted operation: suitable for large facilities and sites, and can be mounted on vehicles for outdoor treatments.
Technical Specifications:
- Brand: IGEBA
- Model: TF 95 HD
- Type: thermal fogger / fog generator
- Solution tank capacity: 60 L
- Solution tank material: stainless steel
- Fuel tank capacity: 5.5 L
- Combustion chamber power: 36.8 kW / 50 hp
- Fuel consumption: approx. 4 L/hour
- Average oil-based solution flow: 60 L/hour
- Maximum oil-based solution flow: 100 L/hour
- Droplet size with oil carriers: below 20 microns VMD
- Solution tank pressure: approx. 0.3 bar
- Power source: 4 × LR20 1.5 V batteries
- Dimensions (L × W × H): 198 × 62 × 68 cm
- Empty weight: approx. 44 kg
- Operation: stationary or vehicle-mountable
- Country of origin: Germany
Water-Based Solutions:
- The TF 95 HD can be set up for water-based solutions with the dedicated Water Conversion Kit; the factory also offers the TF W 95 HD version for this purpose.
- When fitted for water-based solutions:
- Water flow rate: up to 40 L/hour.
- Droplet size with water carriers: below 30 microns VMD.
- Effective horizontal range with water indoors: up to 35 m.
- Horizontal range with water plus carrier indoors: up to 60 m.
Directions for Use:
- Place the unit in a fixed, safe operating position, or mount it on the vehicle using the proper fittings.
- Select an insecticide or formulation approved for thermal fogging according to the target pest and treatment site.
- Prepare the treatment solution at the rate specified on the label of the product used.
- Fill the solution tank without exceeding its maximum capacity of 60 L.
- Start the unit and set the solution flow rate to suit the application, following the IGEBA operating manual and the product instructions.
- The unit converts the treatment solution into fine droplets, forming a fog cloud that spreads through the treatment area and reaches cracks and voids.
- When finished, switch off the unit and clean and inspect the solution system according to the manufacturer's instructions before storage or next use.
- Note: the product dose, solution volume and application rate vary with the pest, the product and the size and nature of the site; always follow the product label and the machine's operating manual.
Applications:
- Control of mosquitoes, flies and other flying insects.
- Insect and pest control programmes inside large facilities and sites.
- Vector control and public health programmes.
- Treatment of warehouses and product storage sites using dedicated formulations.
- Disinfection applications using materials approved for thermal fogging.
- Plant and crop protection applications with authorised formulations.
- Pest control companies, projects and authorities that need to treat large areas.
- Outdoor treatments with the unit mounted on vehicles.
Safety Precautions:
- For professional use only; must be operated by qualified personnel.
- Follow the official IGEBA operating manual before operating the unit.
- Wear the personal protective equipment required by the product label.
- Do not use any insecticide or formulation that is not authorised for application by thermal foggers.
- Keep people not involved in the treatment away from the operating area.
- Do not touch hot parts during operation or immediately after switching off.
- Consider site conditions, ventilation and wind direction when carrying out the treatment.
- Observe the re-entry period and any other precautions stated on the product label.
Orkida Tip:
- For the best performance from the IGEBA TF 95 HD, choose a formulation suitable for thermal fogging and set the application rate according to the pest and the site. Treatment efficiency depends on droplet size, application rate and good distribution of the solution, not on fog density alone; always follow the product label and the machine's operating manual.
