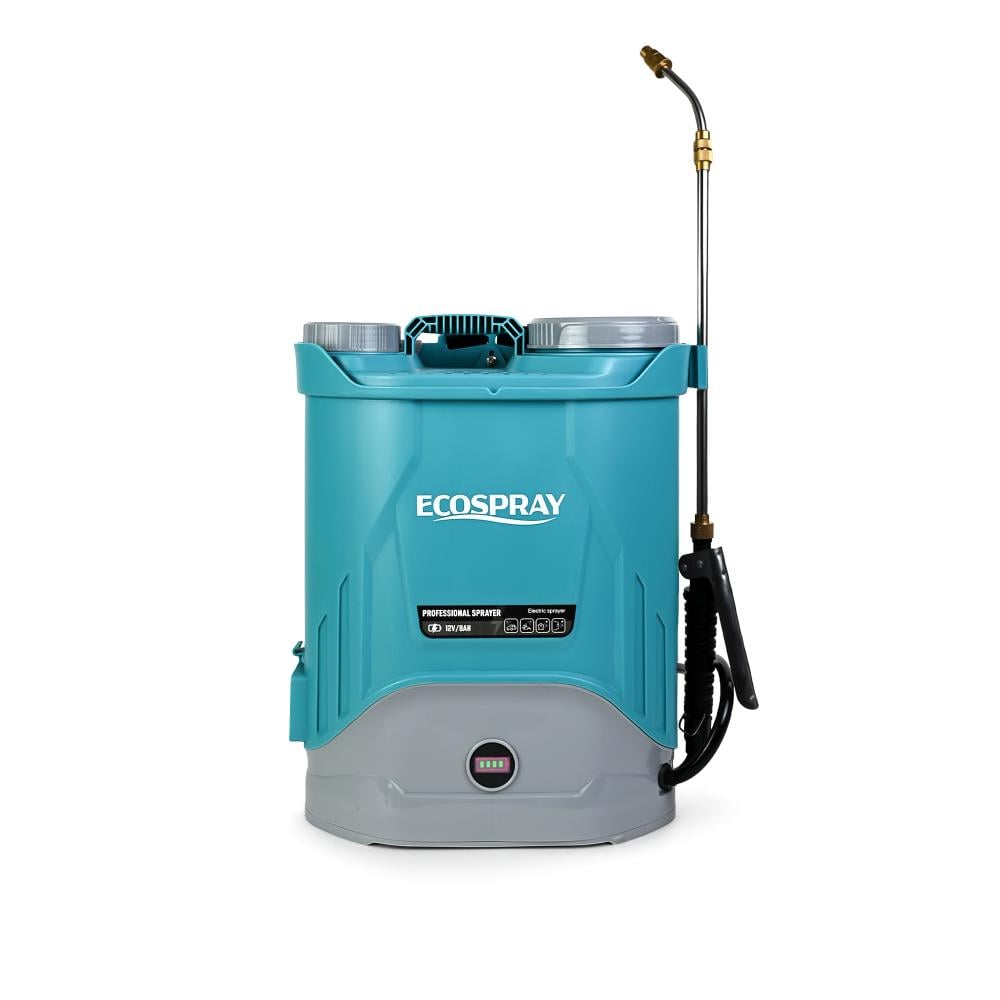

- The ECOSPRAY Ultra 20 L electric backpack sprayer with dual pumps and internal mixing is one of the models equipped for large, frequent spraying jobs. It stands out from the other models with two pumps (8.0 L Double Pump system) instead of one, together with a 12V 12Ah battery and a regulator to control spray power.
- The internal mixing system adds an important advantage during work: it keeps the spray solution moving inside the tank and helps limit settling of its components, especially with pesticides, fertilizers and solutions that need continuous agitation.
- The 20 L capacity reduces refills, while the three nozzles give you different spraying options depending on the job. The sprayer comes with a stainless steel lance with brass connector and nozzle and an LED display to monitor battery voltage, making it suitable for farms, nurseries, pest control work and repeated professional use.
Key Features
- Two pumps – 8.0 L Double Pump instead of a single pump for a better-equipped spray system.
- Internal mixing system moves the solution in the tank and helps reduce settling during work.
- 12V 12Ah battery suited to repeated spraying with a 20 L tank.
- Spray power regulator to choose the right spray level for each use.
- Stainless steel lance with brass connector and nozzle.
- 3 different nozzles with 3, 4 and 8 holes for different spraying methods and uses.
Specifications
- Brand: ECOSPRAY
- Model: Ultra Double Pump
- Type: electric backpack sprayer
- Capacity: 20 L
- Number of pumps: 2
- Pump system: 8.0 L Double Pump
- Battery: 12V – 12Ah lead acid
- Charger: 1.7A
- Spray control: spray power regulator
- Mixing system: internal mixing fan inside the tank
- Spray lance: CF-84B stainless steel
- Connector: brass
- Main nozzle: brass
- Spray handle: CF-107A
- Nozzles included: 3-hole – 4-hole – 8-hole
- Battery indicator: LED voltmeter
- Carrying straps: EVA
- Country of manufacture: China
Directions for Use
- Prepare the pesticide or fertilizer solution at the rate stated on the product, then fill the tank and close it tightly. Choose the right nozzle for the job, switch on the sprayer and set the spray power on the regulator as needed.
- When finished, empty the remaining solution and wash the tank, then run the sprayer with clean water for a short time so water passes through the pumps, hose, lance and nozzle.
Important Notes
- Do not run the pumps with an empty tank.
- Do not leave pesticide or fertilizer solution in the sprayer after use.
- Wash the spray system well before switching from one product to another.
- Keep the charger and charging port away from water and moisture.
- Use the recommended mixing rates for the product used.
Orkida Tip
- If you spray often or cover larger areas, this model stands out from the single-pump Ultra 20L with its two pumps (8.0 L Double Pump), 12Ah battery and internal mixing system. With pesticides or fertilizers that tend to settle, continuous agitation helps keep the solution uniform in the tank during work; after finishing, clean the tank, both pumps and the whole spray path before storage.
