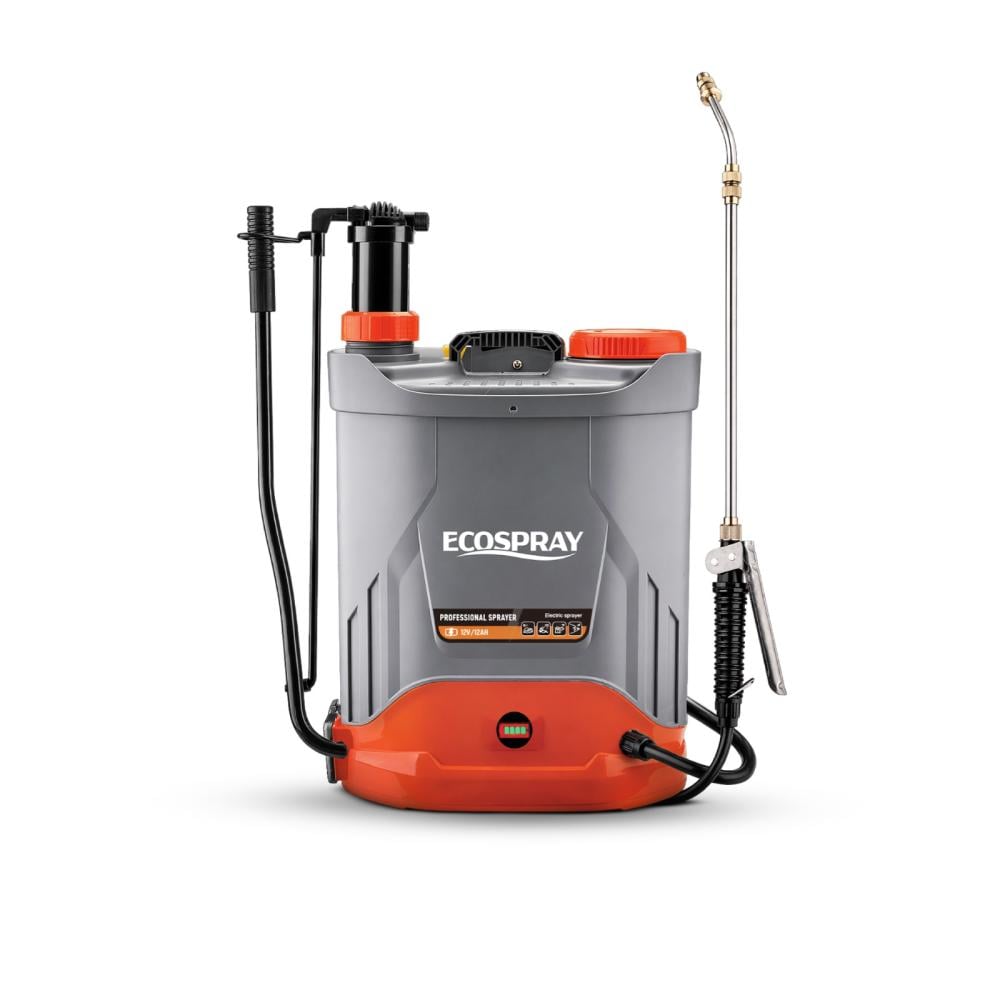

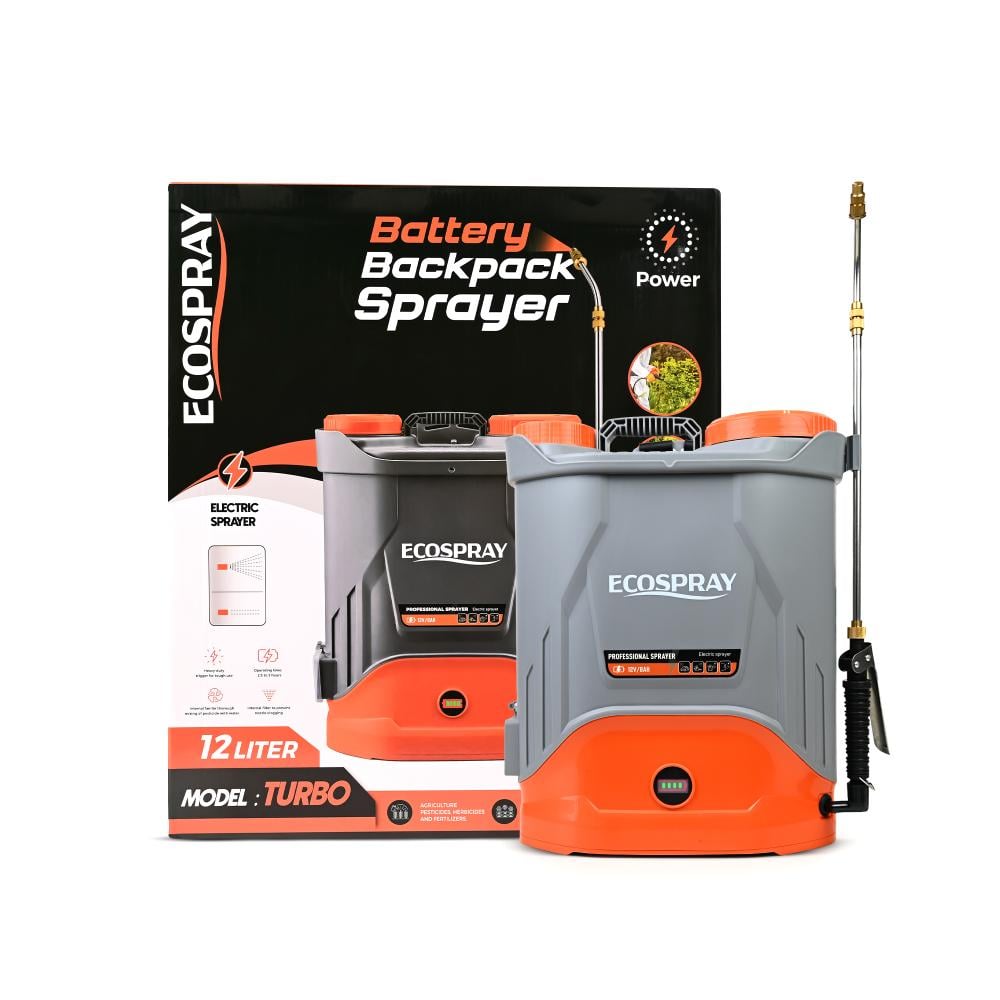

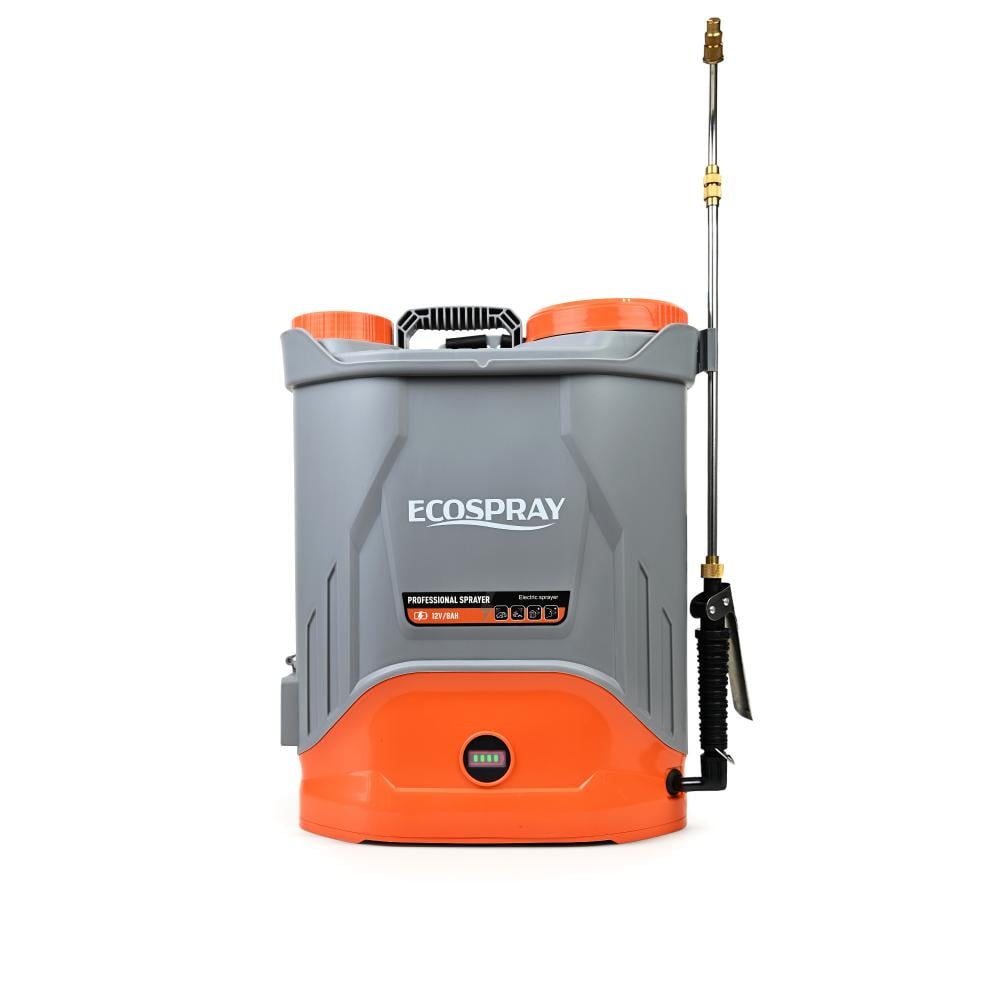

- The ECOSPRAY Turbo 12 L electric backpack sprayer with internal mixing is designed for spraying agricultural pesticides, public health pest control products, liquid fertilizers and agricultural solutions. What sets this model apart is the internal mixing system inside the tank, which keeps the spray solution moving and reduces settling or separation of its components during work – an important feature with solutions that must stay uniform during application.
- It runs on a 12V 8Ah battery with a 4.5 L pressure pump and a regulator to control spray power. It comes with a stainless steel spray lance with brass connector and nozzle, and three different nozzles to choose the right spray pattern. It also has an LED display to monitor battery voltage and EVA backpack straps for comfortable carrying during repeated spraying.
Key Features
- Internal mixing system inside the tank keeps the solution moving and reduces settling during use.
- 4.5 L pressure pump with a regulator to control spray power for each application.
- 12V 8Ah battery for electric operation with no manual pumping.
- Stainless steel spray lance with brass connector and nozzle.
- 3 different nozzles for several spray patterns depending on the job.
- LED display to monitor battery voltage during use.
Specifications
- Brand: ECOSPRAY
- Model: Turbo
- SKU: ECO-SPR-TRB-12000
- Type: electric backpack sprayer for pesticides and fertilizers
- Tank capacity: 12 L
- Operation: battery-powered electric
- Battery: 12V – 8Ah
- Battery type: lead acid
- Number of pumps: 1
- Pump: 4.5 L pressure pump
- Spray power control: speed regulator
- Mixing system: internal fan that stirs and moves the solution inside the tank
- Charger: 1.0A, dedicated to the battery
- Spray lance: stainless steel
- Lance connector: brass
- Main nozzle: brass
- Switch: electric
- Battery indicator: LED voltmeter
- Nozzles included: 3
- Nozzle types: double – four-hole – five-hole
- Carrying straps: EVA backpack straps
- Country of manufacture: China
Directions for Use
- Prepare the spray solution according to the instructions of the pesticide or fertilizer used, pour it into the tank and close it tightly. Switch on the sprayer, choose the suitable nozzle and set the spray power on the regulator for the application. The internal mixing system keeps the solution moving inside the tank during use to help it stay uniform.
- When finished, empty any remaining solution and wash the tank with clean water, then run the sprayer with water for a short time to clean the pump, hose, lance and nozzle.
Important Notes
- Do not run the pump with an empty tank.
- Follow the mixing rate and directions of the pesticide or fertilizer.
- Do not leave spray solution in the tank after work.
- Wash the tank and spray path well before switching to a different product.
- Keep the charger and charging port away from water and moisture.
Orkida Tip
- If you use wettable powders, or solutions and fertilizers whose components may settle in the tank, the internal mixing system of the Turbo 12L becomes one of this model's most important features, because it keeps the solution moving during work. With the spray power regulator and three nozzles, choose the right nozzle and setting for each application instead of one setting for every job.
