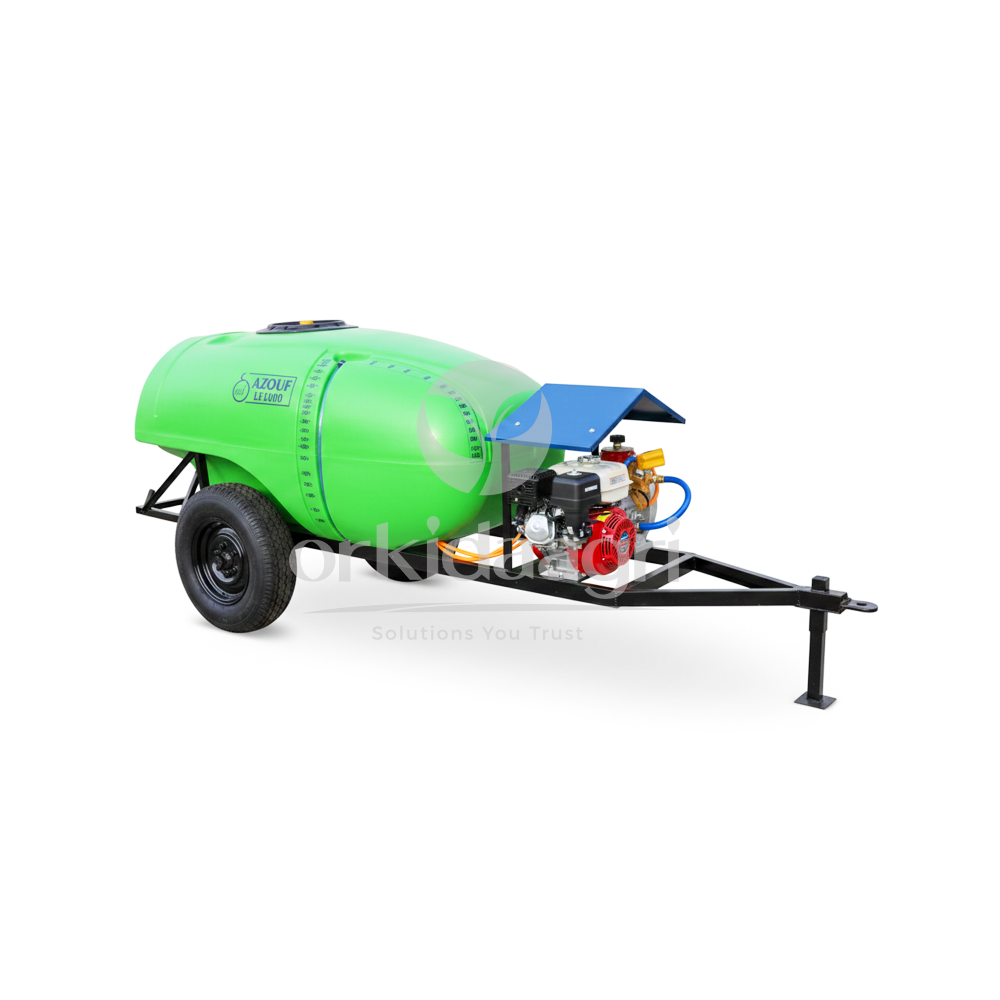

- The AZOUF trailer-mounted agricultural sprayer features a 1000-liter, three-layer insulated fiberglass tank, manufactured in Turkey. Designed to withstand harsh operating conditions in agricultural projects and field pest control, it is powered by a genuine Japanese 9 HP HONDA GX270 engine, ensuring stable performance and long-term durability. Equipped with a Taiwanese pressure pump reaching up to 60 bar, it delivers high pumping power suitable for long-distance spraying, ground injection, and pest control. The two-wheel trailer chassis allows for easy movement within farms and project sites, and includes a protective canopy for the engine and pumping system.
Product Features
- Three-layer insulated fiberglass tank for temperature stability and increased durability
- Turkish-made, designed for heavy-duty agricultural use.
- Genuine Japanese HONDA GX270 engine with 9HP power
- Taiwanese pressure pump up to 60 bar for spraying and injection work
- Two 100-meter-long Korean-style cables to cover large areas without moving the equipment.
- Side liquid level gauge to monitor the amount of solution during operation
- A robust steel trailer chassis suitable for rugged agricultural terrain.
Product specifications
- Brand: AZOUF
- Equipment type: Trailer-mounted agricultural spray pump
- Tank capacity: 1000 liters
- Tank type: Three-layer insulated fiberglass
- Country of origin of the tank: Türkiye
- Engine type: HONDA GX270 (Japanese)
- Engine power: 9 hp
- Fuel type: Gasoline
- Engine oil type: SAE 10W-30
- Operating pressure: up to 60 bar
- Pump type: Taiwanese pressure pump
- Number of hoses: 2
- Hose length: 100 meters per hose
- Drive system: Two-wheel trailer
- Protective canopy: present
Uses
- Termite control projects before and during construction
- Controlling the palm weevil in farms and orchards
- Spraying pesticides and liquid fertilizers on large farms
- Outdoor pest control companies' work
- Spraying tall trees and large areas
How to use
- 1- Make sure that the engine oil is SAE 10W-30 and check its level before starting.
- 2- Fill the tank with water first, then add the pesticide or fertilizer according to the recommended dosage.
- 3- Fill the fuel tank with a minimum of 91 octane gasoline.
- 4- Start the motor and adjust the rotation speed according to the required application pressure.
- 5- Adjust the pressure regulator according to the type of use (spraying - ground injection - trunk treatment).
- 6- After completion, run clean water inside the system to wash the tank, pump and hoses.
Important advice
- In termite control and soil injection applications, it is preferable to operate the device at a stable pressure and only use maximum pressure when necessary to prolong the life of the pistons and valves. Regular cleaning of filters and hoses is also recommended, especially when using highly concentrated pesticides.
Safety warnings
- Operating the pump without water inside the system is prohibited.
- Wear personal protective equipment while spraying.
- Make sure the trailer is securely fastened before operating.
- Do not direct the spray towards people or animals.
- Keep the device away from children.
